With the countdown to the implementation of the “strictest-ever” new national standard for mobile power safety (GB 40165–2026), a wave of compliance and technology upgrades is sweeping across the entire industry.

The new standard imposes unprecedented requirements on protection functions, intelligent management, battery safety, and single-fault protection for mobile power products. These are not only the “lifeline” of product safety but also the “entry ticket” for brands to seize future market opportunities.

As a leading supplier of power management ICs and solutions, NuVolta Semiconductor has responded swiftly. Leveraging its deep expertise in both wireless and wired charging technologies, NuVolta has launched a complete mobile power solution portfolio that covers single‑cell and dual‑cell battery configurations and fully meets the core requirements of the new national standard.

Solution Demo & Interactive Experience – Professional Control at a Glance

PART 1

Dual‑chip architecture plus high‑integration design, particularly suitable for compact ID designs, enhancing design flexibility. For legacy GB‑compliant board frames, no new mold is required – saving tooling costs.

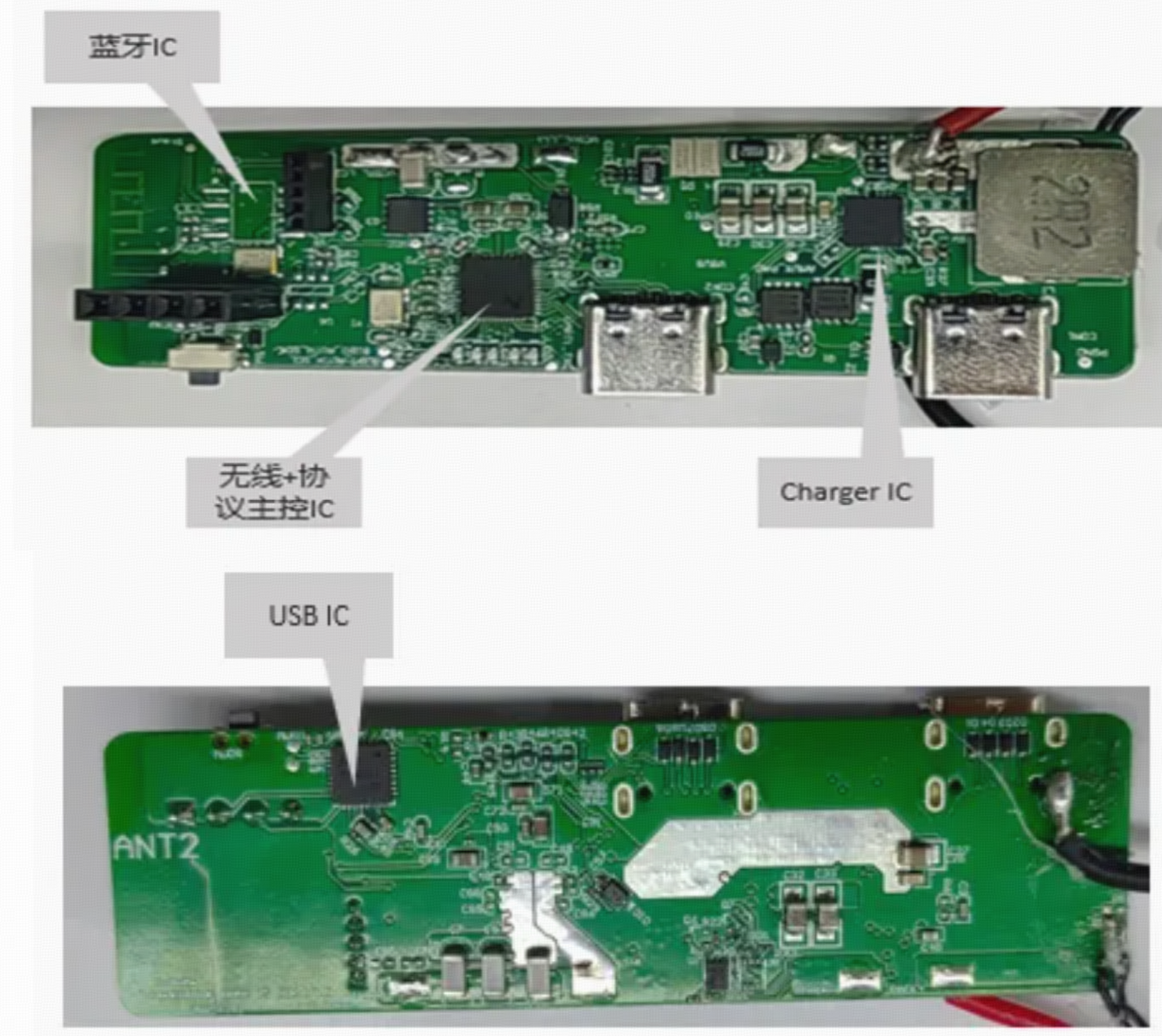

NuVolta new‑standard solution PCBA high‑resolution image

02 Flexible Interaction – Six Smart Display Modes

1. Low‑Cost Solutions

1.1 Power‑Z Display (Sensors Upgrade Mode)
On existing NuVolta solutions, customers can meet the new standard’s display requirements for capacity, voltage, current, etc., through a simple software upgrade – with zero additional hardware cost.
Demo solution: NU17113 + NU6801 + 2‑stage lithium protection + Power‑Z tool
(Demo video)

1.2 UART Serial Display (Sensors Upgrade Mode)
Similarly, no extra hardware cost – only software upgrade – to perfectly display required information via PC UART.
Demo solution: NU17113 + NU6801 + 2‑stage lithium protection + PC

2. Premium Smart Display Solutions

 2.1 Bluetooth Display
After connection, it enables real‑time monitoring, smart pop‑up alerts, Beacon‑based anti‑loss finding, and more. This upgrades the mobile power from a functional accessory to an interactive smart device, significantly enhancing user experience and brand technology perception.
Demo solution: NU17113 + NU6801 + 2‑stage lithium protection + Bluetooth MCU + WeChat mini‑program

2.2 Wired Communication Mode
Through a USB cable / PD port or by manual trigger within the App, users can read complete detailed data logs and historical records.
Demo solution: NU17113 + NU6801 + 2‑stage lithium protection + USB MCU + mobile App

2.3 NFC
Tap‑to‑read – without installing an App or connecting Bluetooth, the mobile phone can read core capacity and safety information, simple and efficient, supporting security inspections. NuVolta solutions also support NFC.

2.4 TFT Screen Display
NuVolta solutions reserve screen interfaces to flexibly support customer TFT display requirements.

NuVolta does not offer a one‑size‑fits‑all interaction solution; instead, it provides a complete “toolbox” covering “basic compliance, wireless smart, and wired professional” options.

03 Charge/Discharge Scenario Demo Interface

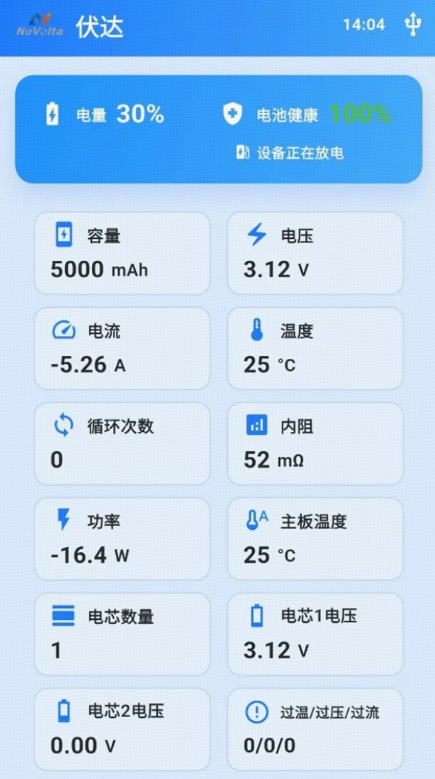

Mobile App / mini‑program screenshots (discharging state)*

– clearly showing battery capacity, real‑time voltage/current, dual‑channel temperature, etc. Key data such as battery health, cycle count, and internal impedance are displayed at a glance.

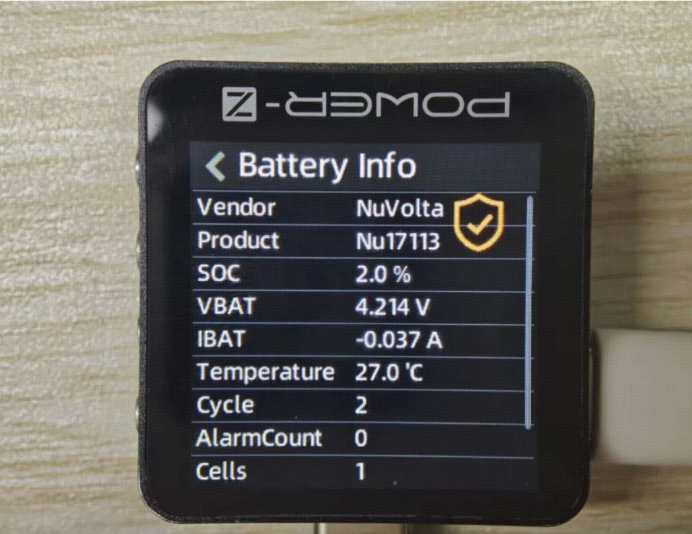

Power‑Z interface – intuitively shows real‑time voltage, current, temperature, cycle count, and other critical information, with a clear layout for quick status understanding.

---

NuVolta New‑Standard Solution Panorama – Flexible Architecture, Full Coverage

PART 2

NuVolta’s new‑standard solution adopts an advanced architecture of “high‑performance main controller + external two‑stage lithium protection + flexible interactive MCU”, which not only meets the mandatory safety and monitoring requirements of the new standard but also provides ample room for product differentiation.

Single‑Cell Solutions (22.5W wired / 15W wireless)

- Wired charging: NU1521 / NU1520 + NU6801 / NU6802
- Wireless charging: NU17103 / NU17113 + NU6801 / NU6802

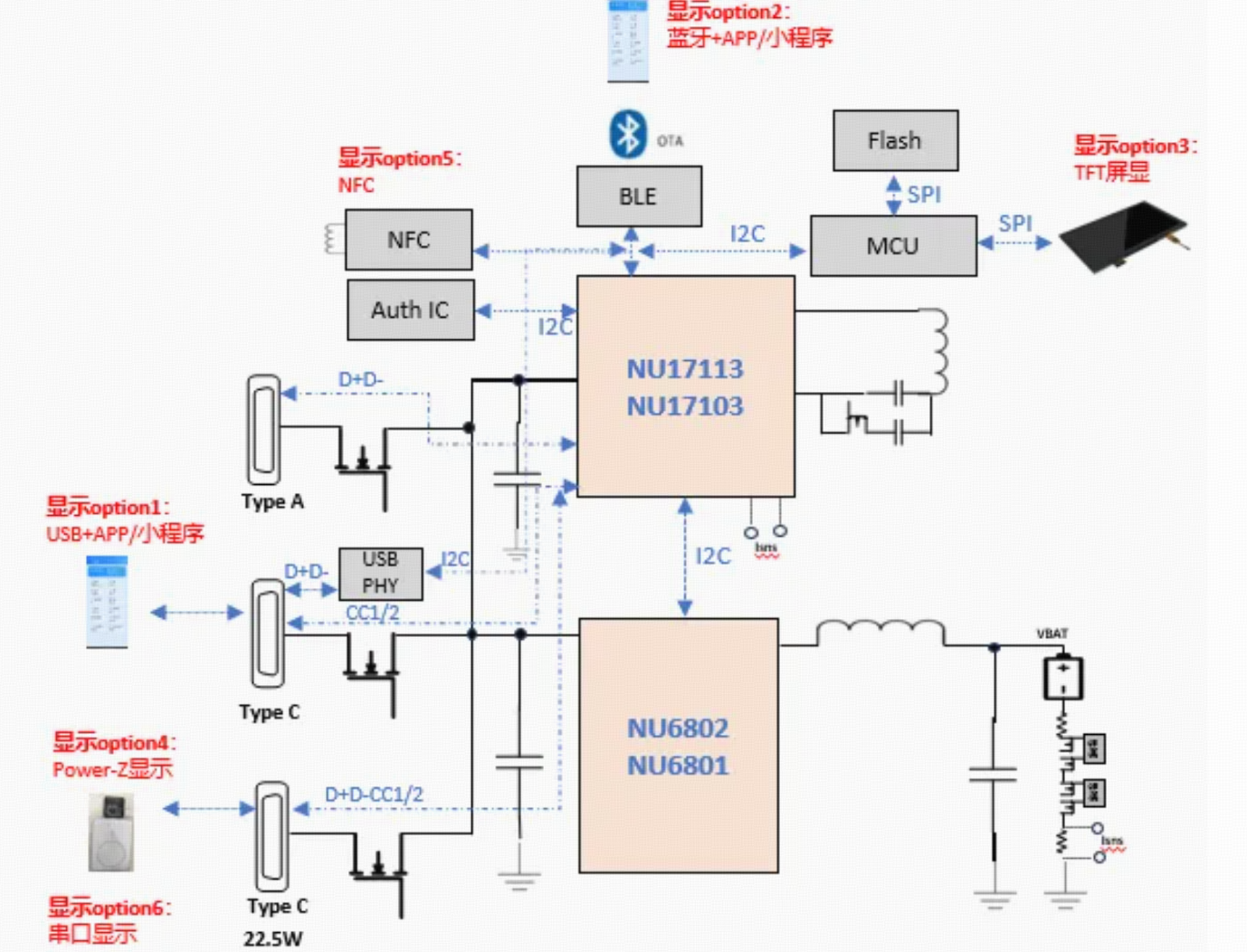

NuVolta new‑standard single‑cell mobile power system block diagram

Key Features
- Compliant with new national standard, supporting smart monitoring
- External two‑stage lithium protection with passive balancing, protecting against single‑point failures
- Built‑in high‑precision current sensing – battery current sampling accuracy < ±3% at >1A; especially critical for low‑temperature charging to prevent lithium plating
- High‑precision voltage sensing – voltage accuracy ±1%
- Built‑in high‑performance battery monitoring and gauge – outputs SOC, SOE, SOH information
- External interactive MCU – flexible and configurable, supporting BLE, USB, TFT screen, and more
- Built‑in high‑accuracy RTC (±1.5%) with calendar function
- 128KB large Flash for data logging
- Supports UL2056, CFCC, CE, 3C, etc.

**Advantages**
- High integration: large Flash / high‑precision current and voltage sensing
- Cost‑effective: no separate BMS needed – relies on powerful main controller plus two external lithium protection ICs to achieve new‑standard and UL2056 compliance
- Enhanced safety: in addition to single‑fault requirements, NU6801/NU6802 integrate OCP, OTP, OVP, etc.

---

Dual‑Cell Solutions (45W wired / 25W wireless)

- Wired charging: NU1521 / NU1520 + NU6805
- Wireless charging: NU17123 + NU6805

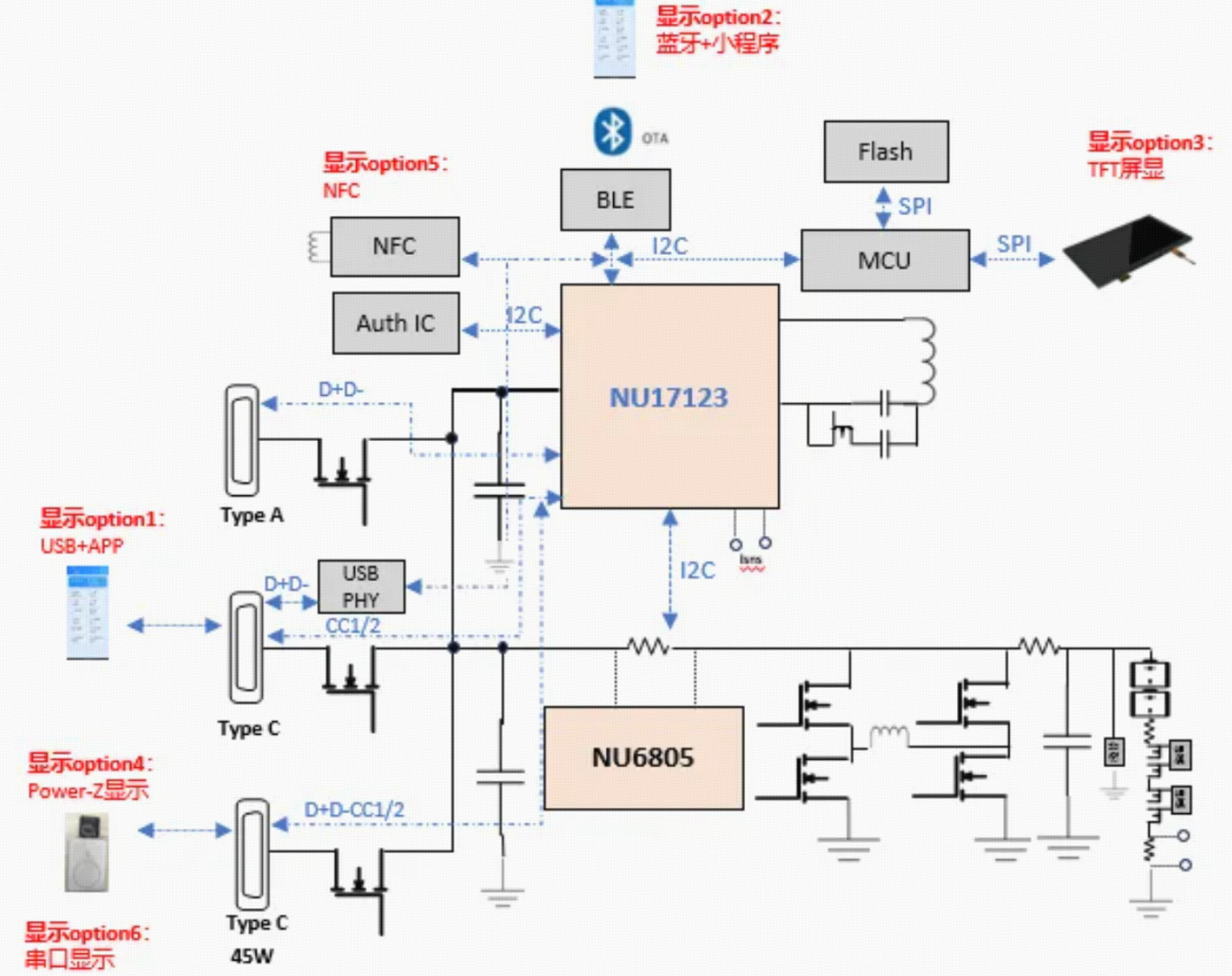

NuVolta new‑standard dual‑cell mobile power system block diagram

Key Features
- Compliant with new national standard, supporting smart monitoring
- External two‑stage lithium protection with passive balancing, protecting against single‑point failures
- Built‑in high‑precision current sensing – battery current sampling accuracy within 3%, critical for low‑temperature charging to prevent lithium plating
- High‑precision voltage sensing – voltage accuracy ±1%
- Built‑in high‑performance battery monitoring and gauge – outputs SOC, SOE, SOH information
- External interactive MCU – flexible and configurable, supporting BLE, USB, TFT screen, etc.
- Built‑in high‑accuracy RTC (±1.5%) with calendar function
- 128KB large Flash for data logging
- Supports UL2056, CFCC, CE, 3C, etc.

---

Meeting the New‑Standard Challenge – How NuVolta Solutions Deliver

PART 3

Dual Protection, Rock‑Solid Safety
01
The new standard and UL2056 both emphasise two‑stage independent protection and high‑precision fault detection.
NuVolta solution: Uses two external, independent, high‑reliability lithium protection ICs, working with internal protection of the main controller to form a dual‑redundant system, strictly meeting the “protection under single‑fault condition” requirement.
High‑precision current sense (CS): Built‑in high‑precision current‑sense amplifier enables milliampere‑level monitoring of charge/discharge currents, ensuring fast and accurate overcurrent and short‑circuit protection, meeting or exceeding the new standard’s current‑sensing accuracy requirements (e.g., <1A with ±50mA tolerance).

Intelligent Management, Full Visibility
02
The new standard requires mobile power to have smart monitoring and recording capabilities.
NuVolta solution: NU6801/NU6802/NU6805 are high‑performance battery monitors and gauges, integrating high‑precision ADCs to achieve:
- Voltage/temperature sensing: accuracy far exceeding the standard’s ±1% requirement, with independent monitoring per cell.
- Full battery lifecycle management: accurately calculates and reports SOC (state of charge), SOE (state of energy), SOH (state of health), and automatically executes the required annual/cycle voltage‑degradation strategy to slow battery aging.
- “Black box” function: built‑in high‑accuracy RTC (±1.5%) and 128KB Flash can log abnormal data (over‑charge, over‑discharge, temperature) every hour, with storage covering the product’s recommended safe service life.
- Smart charge inhibition: supports undervoltage (Bat < 1.5V) and overvoltage lock‑out, removing the old “activation” logic for improved safety.

Battery Safety, Proactive Prevention
03
The solution provides a solid foundation for passing stringent battery tests (over‑charge, crush, nail penetration, aging‑induced lithium plating, etc.). The external lithium protection and main‑controller built‑in protection work together – from cell level to system level – to maximise the avoidance of thermal runaway risks.

Single‑Fault, Confident Response
04
NuVolta solutions are designed from the outset with consideration of single‑point component failure risks. The two‑stage independent protection architecture ensures that even if one stage fails, the other remains effective, greatly enhancing system safety redundancy.

---

Partner with NuVolta – Seize the Opportunity in the New‑Standard Era

PART 4

The implementation of the new standard is not only a challenge but also a major opportunity for industry consolidation and value upgrading. With its complete, mature, and rapidly deployable new‑standard mobile power solutions, NuVolta Semiconductor is committed to being the most reliable partner for customers.

Whether you are a brand needing rapid compliance or a manufacturer aiming for differentiated premium experiences, NuVolta solutions provide a solid technology foundation and flexible expansion capabilities. Contact us to obtain the latest solution materials and jointly lead the new era of mobile power safety and intelligence!
